Narrow scissor lift platform manufacturer
Narrow scissor lift platform Brief Introduction:
Narrow scissor lift platform use for plant,site,hotels,airports,stations,terminals, sports arenas, such as tall buildings of the high-altitude equipment installation, maintain and cleaning Health,the field of power facilities,over head pipes, and other lifting efficiency ideal equipment, Order-at-height safety, convenience and fast.
Rated Loading Capacity:300KG
Lift Drive / Actuation:Hydraulic
Battery:2*12V/80Ah
Certification:CE ISO9001
Control Mode:Self-Propelled
Lifting Height:3-14m
Indoor Shop Convenient Maintained Narrow Scissor Lift:
Tables
|
Model Type |
Unit |
SPS3.0 |
SPS3.9 |
|
Max. Platform Height |
mm |
3000 |
3900 |
|
Max. Working Height |
mm |
5000 |
5900 |
|
Lift Rated Capacity |
kg |
300 |
300 |
|
Ground Clearance |
mm |
60 |
|
|
Platform Size |
mm |
1170*600 |
|
|
Wheelbase |
mm |
990 |
|
|
Min. turning radius |
mm |
1200 |
|
|
Max. Drive peed(Platform Lifted) |
km/h |
4 |
|
|
Max. Drive e Speed(Platform Lowered) |
|
0.8 |
|
|
Lifting/falling speed |
sec |
20/30 |
|
|
Max. Travel Grade |
% |
10-15 |
|
|
Drive motors |
V/Kw |
2×24/0.3 |
|
|
Lifting motor |
V/Kw |
24/0.8 |
|
|
Battery |
V/Ah |
2×12/ 80 |
|
|
Charger |
V/A |
24/15A |
|
|
Max allowable working angle |
|
2° |
|
|
Overall Length |
mm |
1180 |
|
|
Overall Width |
mm |
760 |
|
|
Overall Height |
mm |
1830 |
1930 |
|
Overall Net Weight |
kg |
490 |
600 |

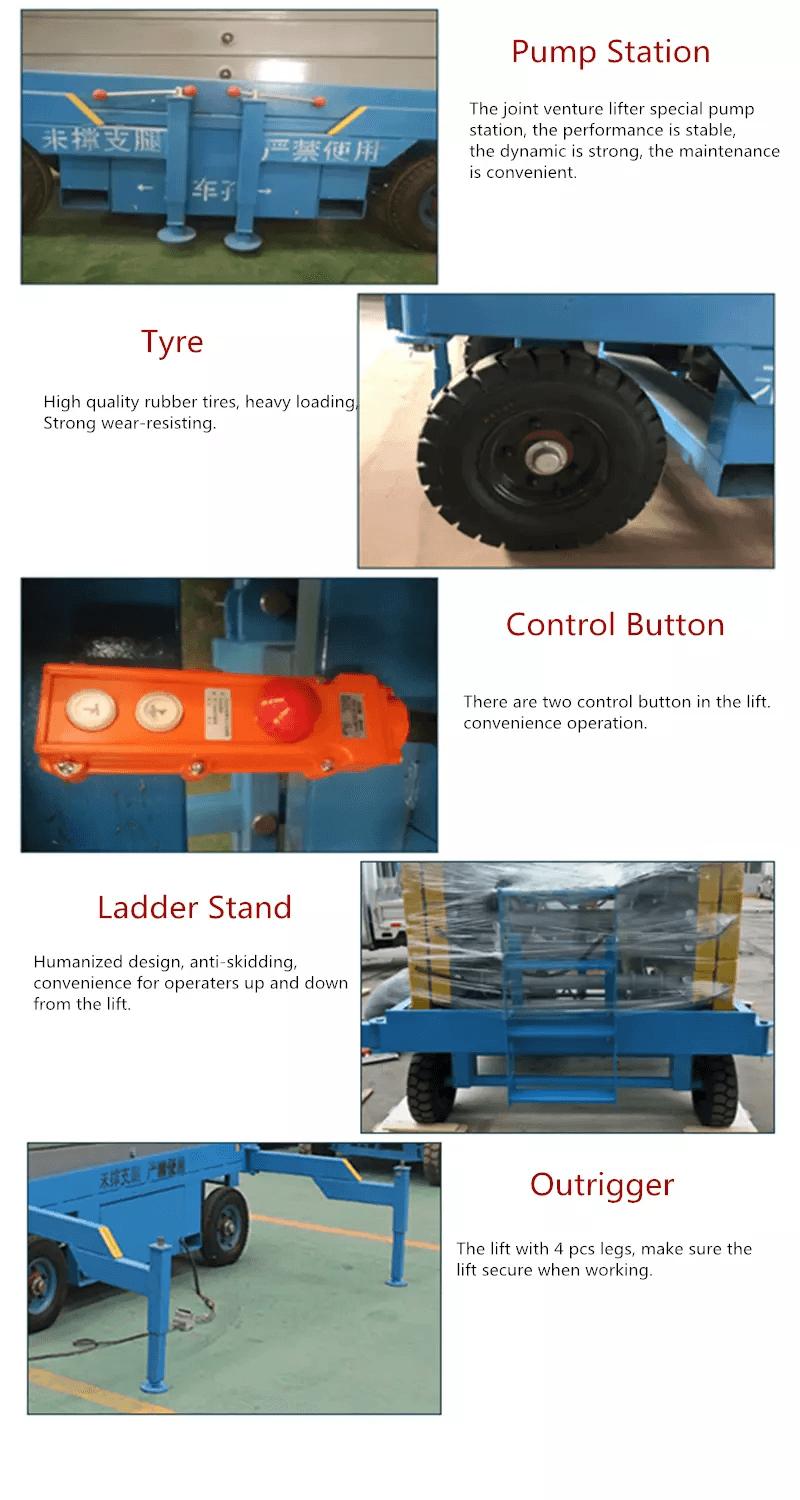

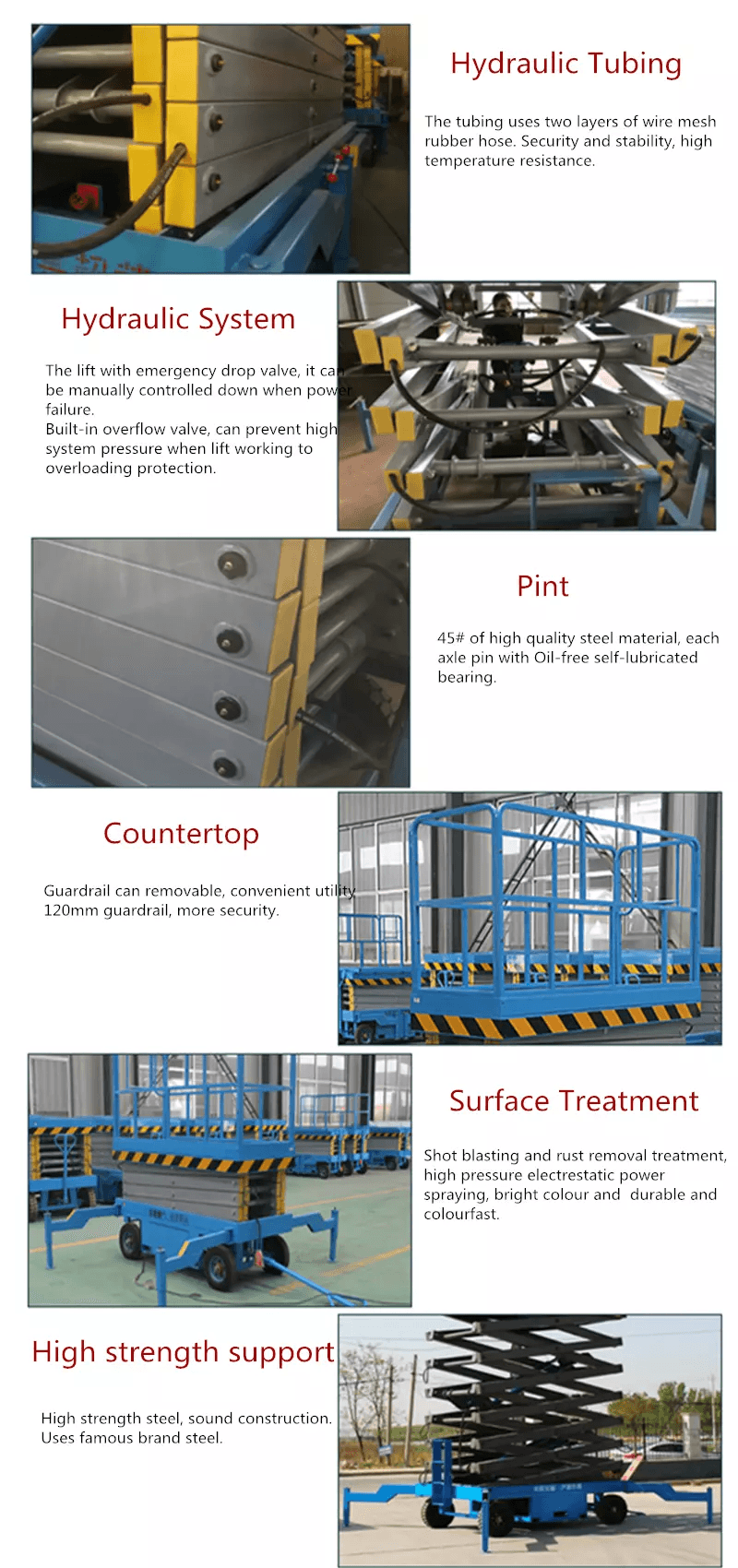

Narrow scissor lift platform parts show
FAQ:
Q: What information should I provide when I query?
A: 1, lifting height, 2, platform size, 3, driving mode, 4, working environment
Q: How can I consult?
A: WhatsApp / WeChat / Phone / Mail / Online
Q: Can this type work in a hazardous environment?
A: Of course! We can customize it for you, acid or explosion proof, no problem.
Q: Can you offer me a discounted price?
A: Welcome to consult me.
Q: How to use and install?
A: We can provide you with technical guidance.
Q: Safety device
A: Overload limiter, limit switch (lift and travel), interlock protection.
