Introduction of fixed type scissor lift platform :
5ton stationary scissor lift platform is used for transporting goods between the building floors, It is mainly used in workshop, warehouse, underground garage storage between car lift and other places need to lift goods up and down. Its hydraulic system has fall protection device, overload protection device. emergency falling device when power is off. 5ton fixed scissor lift platform has strong structure, large loading capacity, smooth movements, easy to install and maintain, it is economical and practical cargo transportation equipment.
Rated Loading Capacity: 0.3t-20t
Max. Lifting Height: 1500mm
Voltage: DC 12V/24V AC 220V/380V
Usage: Lifting cargo
5 ton scissor lift platform specifications:
Tables
|
Model |
capacity |
Min. height |
Lifting range |
Platform size |
Motor power |
Self-weight |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |
Product feature of fixed type scissor lift :
1.Stationary scissor lift platform is Installed in the pit,when falls down,it will not occupy space.
2.The control panels are available at the designated floors and on the lift platform.You can also choose the remote control
3.Great load capacity, anti-skid platform, stable scissor structure.

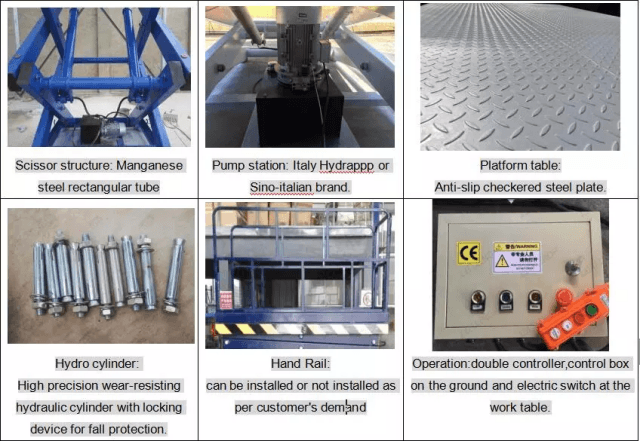

Details of fixed scissors lifting platform：
